Get to know your ride
Length:
2061 mm
Width:
786 mm
Height:
1100 mm
Wheelbase:
1347 mm

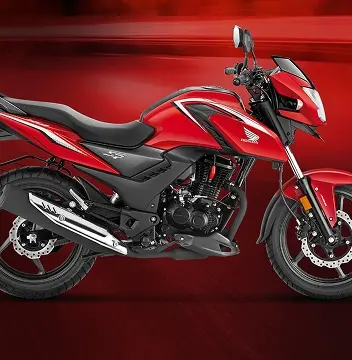

Ground Clearance:
177 mm
Kerb Weight:
138 kg
Seat Length:
594 mm
Seat Height:
796 mm
Fuel Tank Capacity:
12 L
Range:
Top Speed:
0-40 km/h acc:
0-60 km/h acc:
Max torque:
14.8 N-m @ 5250 rpm
Gradeability:

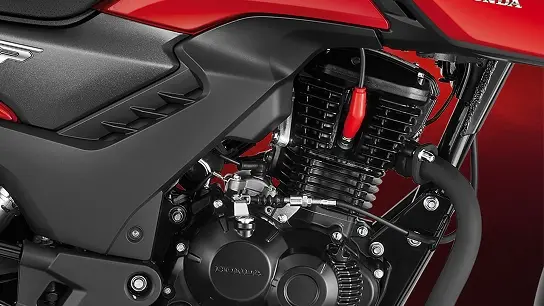

Type:
4-Stroke, SI, BS-VI Engine
Displacement:
162.71 cc
Max Engine Output:
9.7 Kw @7500 rpm
Max Net Torque:
Fuel System:
PGM-FI
Bore:
57.3 mm
Stroke:
63.096 mm
Compression Ratio:
10.0:1
Starting Method:
Self
Clutch Type:
Multiplate Wet Clutch
No. of Gears:
5
Motor Type:
Maximum Power/Peak Power:
Tyre Size & Type (Front):
80/100-17 M/C 46P, Tubeless
Tyre Size & Type (Rear):
130/70-17 M/C 62P, Tubeless

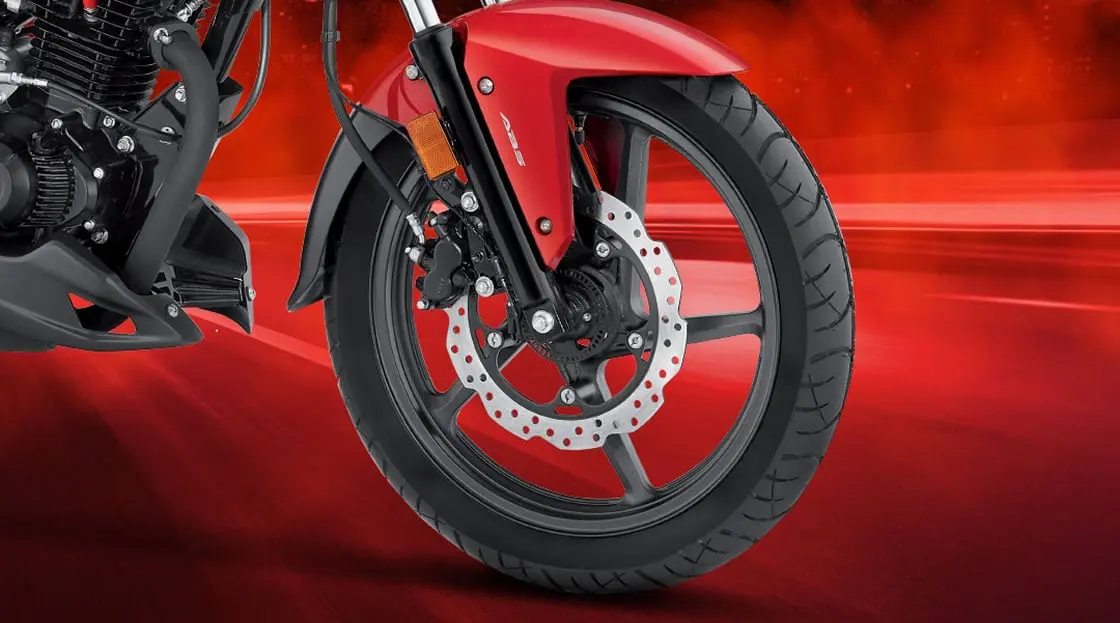

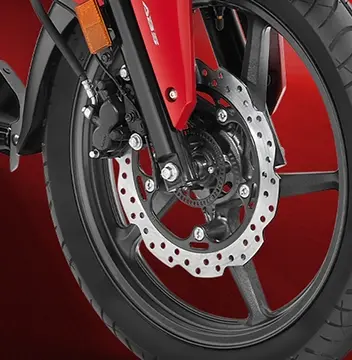

Brake Type & Size (Front):
Disc - 276 mm
Brake Type & Size (Rear):
Drum - 130 mm
Battery Capacity:
Battery System:
Battery Type:
Water & Dust Resistance:
Frame Type:
Diamond Type
Wheel Type:
Diamond Type
Front Suspension:
Telescopic

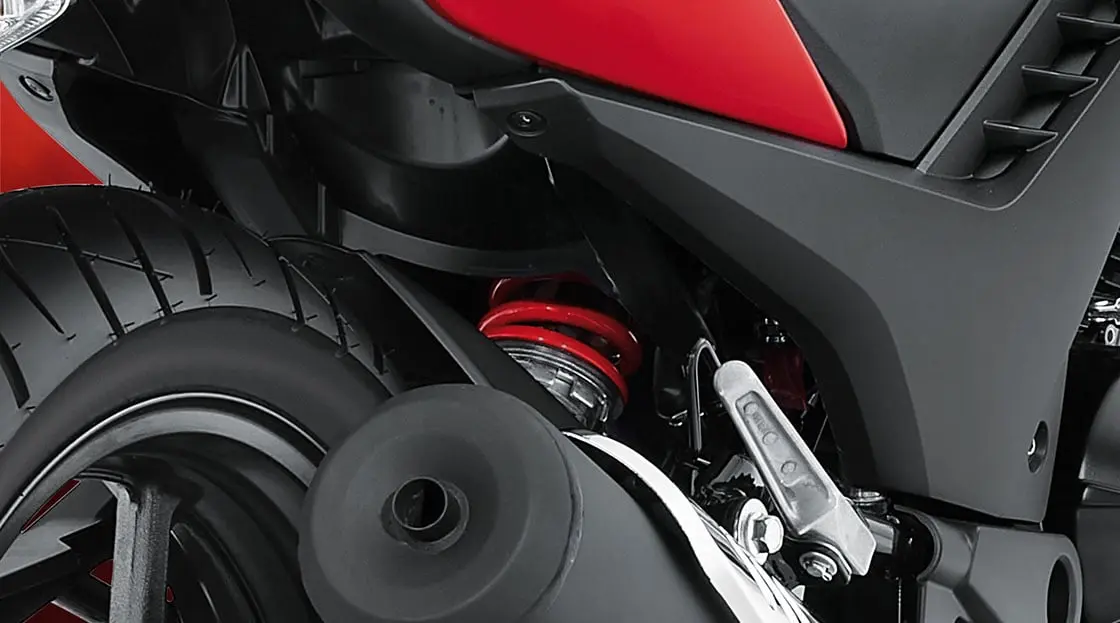

Rear Suspension:
Monoshock
Boot Space:
Left Glove Box Capacity:
Battery:
12 V, 5 Ah

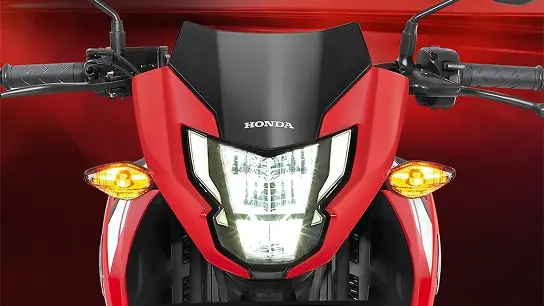

Headlamp:
LED
Winkers:
Headlights:
Indicators:

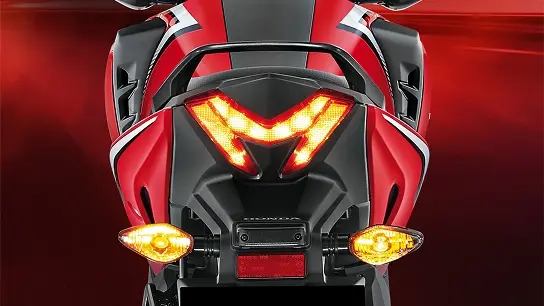

Tailligths:
Charger Type:
Charger:
Charging Time (0-80%):
Charging Time (0-100%):
CAN controlled auto-cut technology:

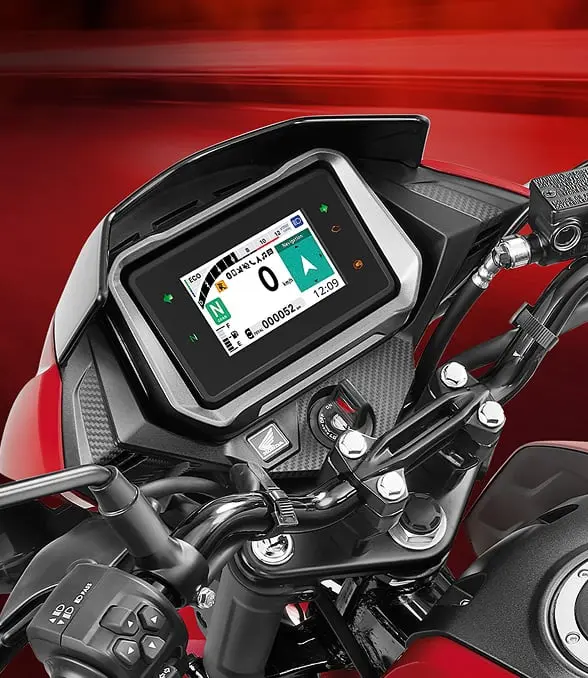

Screen Size and Type:
Resolution:
Colours:
Brightness:
Aspect Ratio:
Water & Dust Resistance:
Riding Modes:
Side stand inhibitor:
