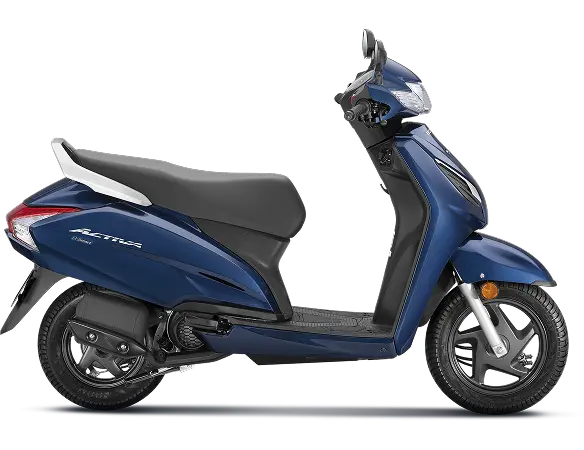

Get to know your ride
Length:
1833 mm
Width:
677 mm
Height:
1165 mm
Wheelbase:
1260 mm
Ground Clearance:
162 mm
Kerb Weight:
106 kg
Seat Length:
692 mm
Seat Height:
764 mm
Fuel Tank Capacity:
5.3 L
Range:
Top Speed:
0-40 km/h acc:
0-60 km/h acc:
Max torque:
9.05 Nm @ 5500 rpm
Gradeability:
Type:
4 stroke, SI Engine
Displacement:
109.51 cc
Max Engine Output:
5.88 kW @ 8000 rpm
Max Net Torque:
Fuel System:
PGM-FI
Bore:
47.10 mm
Stroke:
63.1 mm
Compression Ratio:
10.0 : 1
Starting Method:
Self/Kick
Clutch Type:
Automatic (V-Matic)
No. of Gears:
Motor Type:
Maximum Power/Peak Power:
Tyre Size & Type (Front):
90/90-12 54J (Tubeless)
Tyre Size & Type (Rear):
90/100-10 53J (Tubeless)
Brake Type & Size (Front):
Drum - 130 mm
Brake Type & Size (Rear):
Drum - 130 mm
Battery Capacity:
Battery System:
Battery Type:
Water & Dust Resistance:
Frame Type:
Under Bone

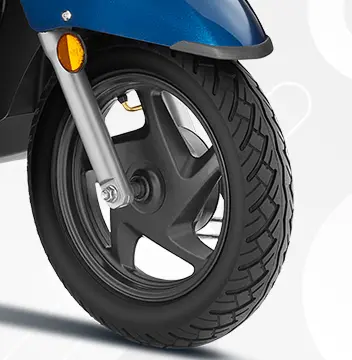

Wheel Type:
Under Bone

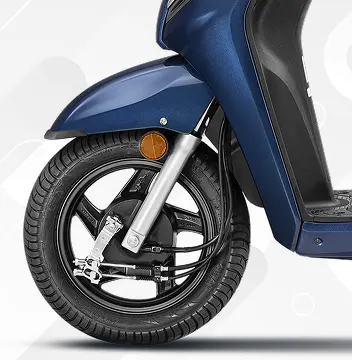

Front Suspension:
Telescopic
Rear Suspension:
3 Step Adjustable Unit Swing
Boot Space:

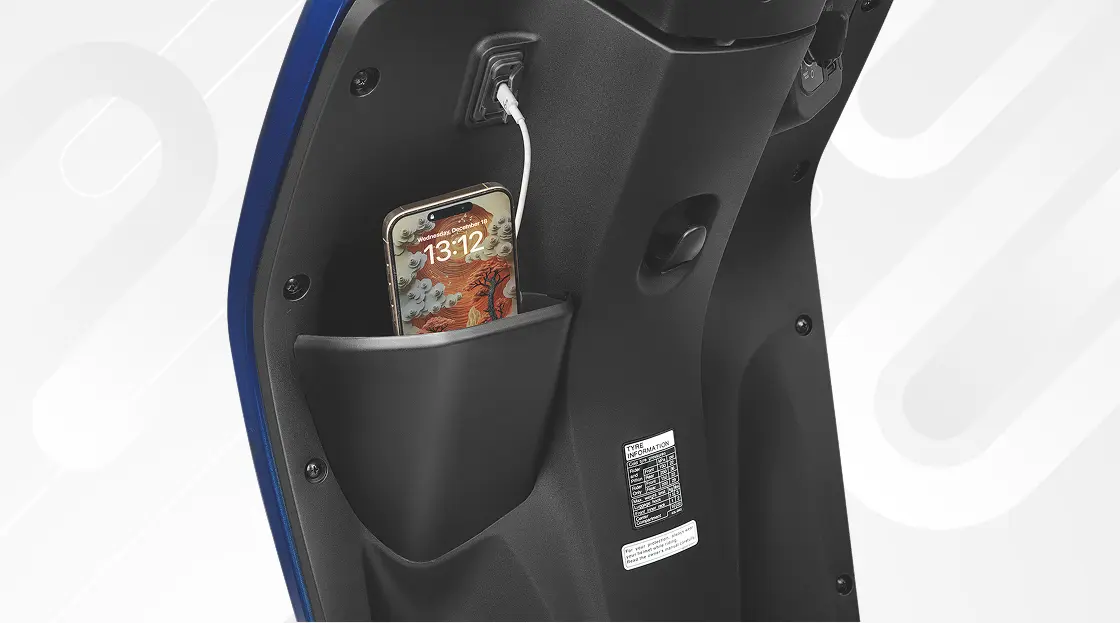

Left Glove Box Capacity:
Battery:
12 V, 5.0 Ah (MF)

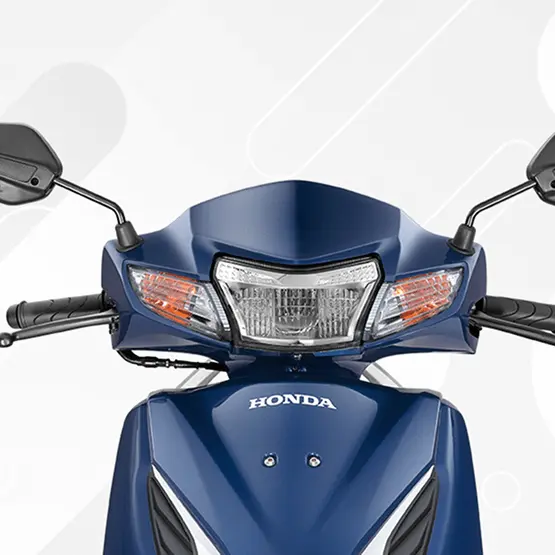

Headlamp:
Halogen
Winkers:
Headlights:
Indicators:
Tailligths:
Charger Type:
Charger:
Charging Time (0-80%):
Charging Time (0-100%):
CAN controlled auto-cut technology:

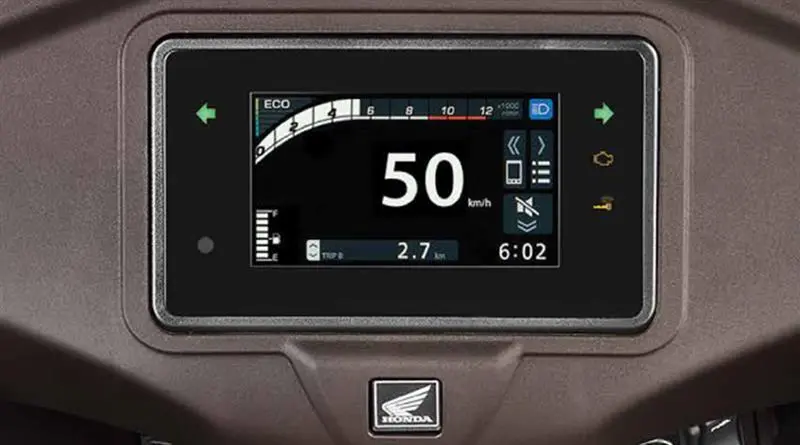

Screen Size and Type:
Resolution:
Colours:
Brightness:
Aspect Ratio:
Water & Dust Resistance:
Riding Modes:

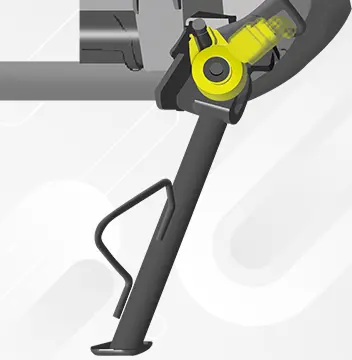

Side stand inhibitor:
